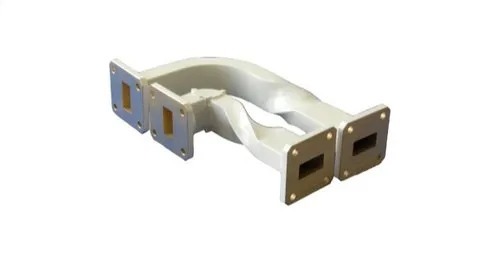

Fabricated Aluminium Waveguide

Get a Price/Quote

MOQ : 1000 Pieces

Fabricated Aluminium Waveguide Specification

Model
Custom Fabricated Aluminium Waveguide

Connectivity Type
Flange mount or custom interfaces

Range
Frequency range as per selected model

Size
5 - 40 mm

Mounting Type
Flange mounting, Panel mounting

Features
High Strength, Lightweight, Corrosion Resistant, Precision Fabrication

Operating Temperature
-40C to +85C

Shelf Life
25+ years (Under standard operating conditions)

Interface Type
Rectangular flange, circular flange, custom

Frequency
5.85 GHz to 110 GHz (dependent on model)

Product Type
fabricated waveguide

Application
TELECOMMUNICATION AND OTHERS

Dimension (L*W*H)
Millimeter (mm)

Material
ALUMINIUM

Weight
Depends on size and configuration

Capacity
High power handling capability

Compliance
RoHS compliant

Finish
Smooth inner walls to reduce microwave attenuation

Surface Finish
Anodized or powder coated for enhanced durability

Customization
Length, flanges, and bends per client requirements

End Connection
UG, CPR, UBR or custom available

VSWR
1.05:1 maximum

Precision
Fabricated to tight tolerances for minimal signal loss

Insertion Loss
Minimal, typically < 0.05 dB

Impedance
Typically 50 Ohms

Fabricated Aluminium Waveguide Trade Information

Minimum Order Quantity
1000 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
4-6 Week

Sample Available
Yes

Certifications
AS REQUIRED

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
wooden packaging and box card packaging

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Fabricated Aluminium Waveguide

Procure the illustrious Custom Fabricated Aluminium Waveguide at an unbeatable price-your next hot deal for telecommunication solutions. Crafted from pristine, polished aluminium, each waveguide boasts an anodized or powder-coated surface for enhanced strength and corrosion resistance, ensuring a lifespan of over 25 years. Engineered to exacting tolerances, it minimizes signal and insertion loss, while offering high power handling. Fully customizable in size, length, and interface type, this RoHS-compliant product is designed for peak performance, making it the ultimate choice for discerning professionals across industries.

Versatility and Precision in Fabricated Aluminium Waveguides

Our fabricated aluminium waveguides are impeccably polished and precisely engineered for telecommunication and various other high-frequency applications. Installation is seamless, with flange, panel, or custom mounting options. Boasting exceptional features-lightweight construction, high strength, and corrosion resistance-these waveguides find additional uses in radar, satellite communication, and scientific research setups. Each unit allows customization in bends, flanges, and length to meet specific operational demands, emphasizing reliability and adaptability in every application.

Certifications and Global Distribution for Fabricated Aluminium Waveguides

Each waveguide is supplied with RoHS compliance certification, ensuring alignment with global environmental standards. Our main export markets span Asia and the Middle East, guaranteeing international reach. Shipment of goods is handled swiftly from key FOB ports across India, supported by transparent valuation processes and reliable goods transport networks. Customers can expect efficient logistics, secure handling, and prompt delivery whether procuring a single waveguide or bulk quantities for larger projects.

FAQ's of Fabricated Aluminium Waveguide:

Q: How does the anodized or powder-coated surface finish benefit waveguide performance?

A: The anodized or powder-coated surface enhances durability by providing corrosion resistance and maintaining a polished, smooth interior. This reduces microwave attenuation and ensures minimal signal loss over the waveguide's long lifespan.

Q: What applications are suitable for the fabricated aluminium waveguide?

A: These waveguides are ideal for telecommunications, radar systems, satellite links, and scientific equipment-anywhere high-frequency signal transmission and minimal loss are essential.

Q: When can I expect shipment and delivery after placing an order?

A: Orders are processed rapidly, and shipment occurs through established Indian FOB ports. Delivery timelines vary depending on destination but are managed efficiently for both domestic and international shipments.

Q: Where can the fabricated aluminium waveguide be customized to fit specific requirements?

A: Customization is available for length, flange type, bends, and even interface styles (UG, CPR, UBR, or custom), ensuring the product meets unique operational or system needs.

Q: What is the process for placing a bulk procurement or export order for these waveguides?

A: Simply contact our sales or export team with your specifications. We'll guide you through the procurement process, provide valuation, organize secure goods transport, and coordinate timely shipment.

Q: What are the main benefits of using a precision-fabricated aluminium waveguide in communication systems?

A: Precision fabrication ensures minimal signal loss, high power handling, and robustness under varied operating conditions, resulting in reliable and efficient communication system performance.
