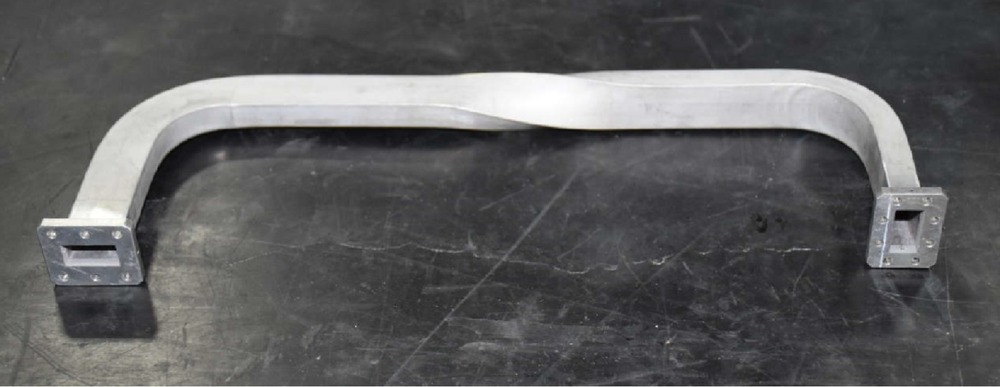

Aluminium Waveguide

Get a Price/Quote

Aluminium Waveguide Specification

Range
-20C to 100C (-4F to 212F).

Features
Durable

Product Type
ALUMINIUM WAVEGUIDE

Application
TELECOMMUNICATION AND OTHERS

Dimension (L*W*H)
AS PER COSTUMER REQUIREMENT Millimeter (mm)

Material
Aluminium Alloy

Aluminium Waveguide Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
4-6 Week

Certifications
AS REQUIRED

Sample Available
Yes

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
WODDEN PACKAGING, CARD BOX PACKAGING

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Aluminium Waveguide

Overview

An Aluminium Waveguide is a type of waveguide made from aluminium, used to transmit electromagnetic waves, typically in the microwave or millimeter wave frequency range.

Key Features

1. Aluminium Construction: Made from high-quality aluminium alloy, providing excellent electrical conductivity and durability.

2. Waveguide Design: Designed to transmit electromagnetic waves with minimal loss and distortion.

3. Frequency Range: Typically operates in the microwave or millimeter wave frequency range (e.g 1-100 GHz).

4. Waveguide Modes: Supports various waveguide modes, such as TE10, TE20, and TM11.

Technical Specifications

1. Frequency Range: 1-100 GHz (dependent on waveguide design).

2. Waveguide Size: Various sizes available, such as WR-28, WR-42, and WR-90.

3. Aluminium Alloy: 6061-T6 or 6063-T5 (dependent on application).

4. Surface Finish: Anodized or silver-plated for improved electrical conductivity.

5. Operating Temperature: -20C to 100C (-4F to 212F).

Applications

1. Radar Systems: Used in radar systems for target detection and tracking.

2. Communication Systems: Used in communication systems, such as satellite communications and wireless networks.

3. Medical Applications: Used in medical applications, such as cancer treatment and imaging.

4. Scientific Research: Used in scientific research, such as particle accelerators and spectroscopy.

Benefits

1. Low Loss: Aluminium waveguides have low loss and high efficiency.

2. High Power Handling: Can handle high power levels without significant loss or damage.

3. Durability: Made from durable aluminium alloy, providing long-term reliability.

4. Customizable: Can be customized to meet specific application requirements.

Standards Compliance

1. IEEE Standards: Compliant with IEEE standards for waveguides.

2. MIL-STD: Compliant with military standards for waveguides.

3. Other Standards: Compliant with other industry standards, such as those set by the International Electrotechnical Commission (IEC).
